Product Details

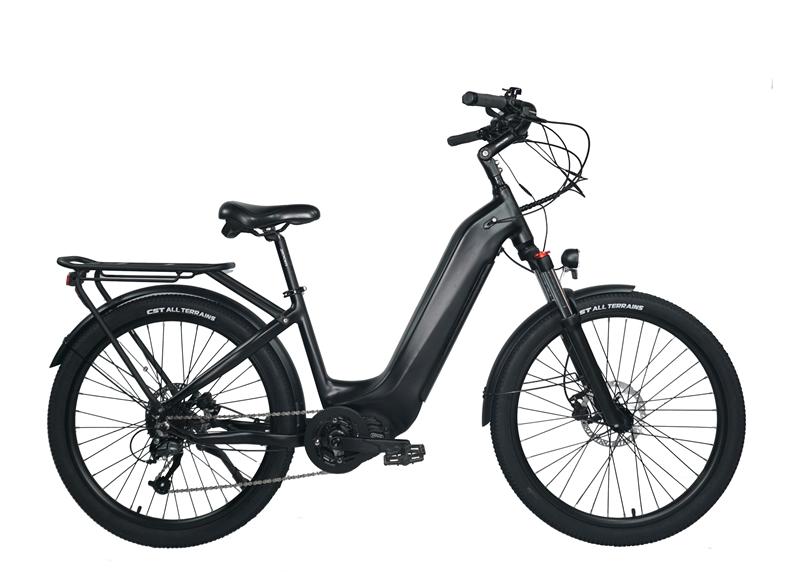

l Model: JK-470F
l Frame Material: Aluminum Alloy 6061
l Motor: Mid motor
l Motor Brand: BAFANG M600
l Battery: 48V 20AH
l Tire: 26″/27.5″/29″ *2.1
l Brake: Hydraulic / Mechanical Disc Brake
Parameter
Data On Cycle | |||
Frame | AL 6061 | Stem | AL, Fixed |
Fork | ZOOM Suspension Fork | Saddle | Black leather surface |
Head Set | NECO | Tyre | CST / KENDA |
Rim | Double AL | Reflector | Reflector, transparent CPSC, BS |
Hub | Bearing | Chain | KMC |
Brake | Disc Brake Hydraulic / Mechanical | Handle Bar | ZOOM AL6061 |
Shifting Lever | SHIMANO 7/8/9/10s | Rear Derailleur | SHIMANO 7/8/9/10s |
Free Wheel | SHIMANO 7/8/9/10s | Front Derailleur | N/A |
Data On Motor | |||
Mid Motor Brand | AQL/BAFANG/MOTINOVA | ||
Voltage (V) | 36V Optional:48V | ||
Power (W) | 250W Optional:350W/ 500W/ 750W/ 1000W | ||
Rear Hub Motor | BAFANG/SHENGYI | ||
Voltage (V) | 36V Optional:48V | ||
Power (W) | 250W Optional:350W/ 500W/ 750W/ 1000W | ||
Battery | 13AH/14AH/17.5AH Samsung/LG/EVE cells | ||
Sensor | Speed Sensor Optional:Torque Sensor | ||
Display | LCD Optional:TFT/LED | ||
Max Speed (Km/h) | 25km/h / 32km/h | ||
Head light | Optional | ||
Rear light | Optional | ||
Main Cable | 1T3 | ||
Charger | 54.6V-3A, AC, DC 2.1*5.5 US standard (UL/CE) | ||
Charging Time | 6h~7h | ||
