Product Details
v Data display : It shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status and other cycling parameters;
v Intelligent power : A true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;
v Parameter setting : With a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ;
v Data view : Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding;
Parameter

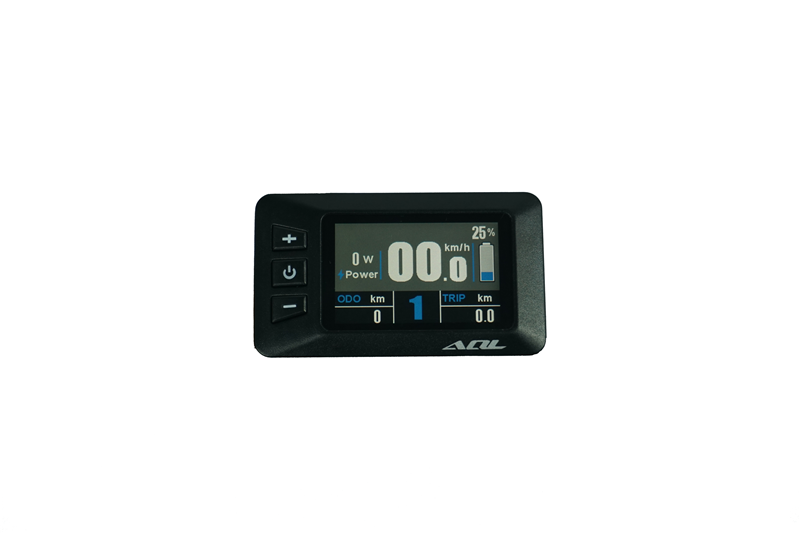

Model No. | MPCU-2C | Display Type: | TFT |
Display: | Matrix Display | Rated Voltage (DCV): | 24/36/48 |
Support Modes: | 0-5 | Holder (mm): | 22.2 |
Cable Length (mm): | 100 | Speed Assistance level: | Yes |
Capacity Indication: | Yes | Walk Assistance： | Yes |
Current Speed (km/h): | Yes | Maximum Speed (km/h): | Yes |
Average Speed (km/h): | Yes | Trip Time: | Yes |
Trip/ODO: | Yes | Remaining Range: | Optional |
Dimensions (mm): | 81*48*41.6 | Error Code: | Yes |
Recover Default: | Yes | Backlight: | Yes |
Light Sensor: | Yes | Bluetooth: | Optional |
USB Charge: | No | Waterproof: | Ip65 |
