AQL275DOP-M

Product Details



v Product: Frame+Electric Kits



v Bike Frame Design:  We could according to your requirements, including motor type, wheel size, fork size to design the bike frame for you.



v Electric Bicycle Parts:  The electric bicycle parts could be changed according to your requirements.



v Motor Kits:  Available hub motors or mid motors for your choice.

Hub Motor: BAFANG / SHENGYI

Mid Motor: AQL / BAFANG / MOTINOVA



v  Battery: Could customize the capacity according to your demand, available brand: EVE /LG/SAMSUNG. Our battery got all documents (UN38.8, MSDS) for sea shipment.



v Color: Could customize the color according to your demand.



v Logo: Customize your own logo on the e-bike.



Parameter

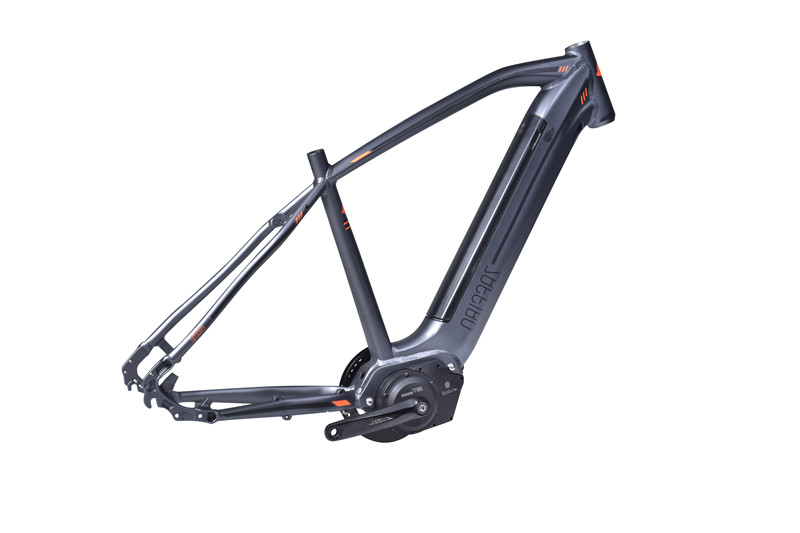

CUSTOMIZE EBIKE FRAME
Material	Aluminum Alloy 6061
Type	Suit for mid motor/hub motor
Wheel Size	26″/27.5″/29″
Frame Size	16″/18″/19″/21″
Color	Customize colors for you
Logo	Print your own logo on the frame
ELECTRIC KITS FOR YOUR CHOICE
Mid Motor Brand	AQL / BAFANG / MOTINOVA
Voltage (V)	36V   Optional: 48V
Power (W)	250W  Optional:350W/500W/750W/1000W
Hub Motor Brand	BAFANG / SHENGYI
Voltage (V)	36V   Optional: 48V
Power (W)	250W  Optional:350W/500W/750W/1000W
Display	LCD   Optional: TFT/LED
E-Brake Lever	Hydraulic / Mechanical Electric brake lever
Front Light	Optional
Rear Light	Optional
Battery (Wh)	Samsung/EVE/LG (customize the capacity upon your needs)
Charger	54.6V-3A, AC, DC 2.1*5.5 US standard (UL/CE)
Charging Time	6h-7h
