Products

Mid Drive Units

MS1300

浏览次数:1518   更新时间:2022-07-03


Product Details

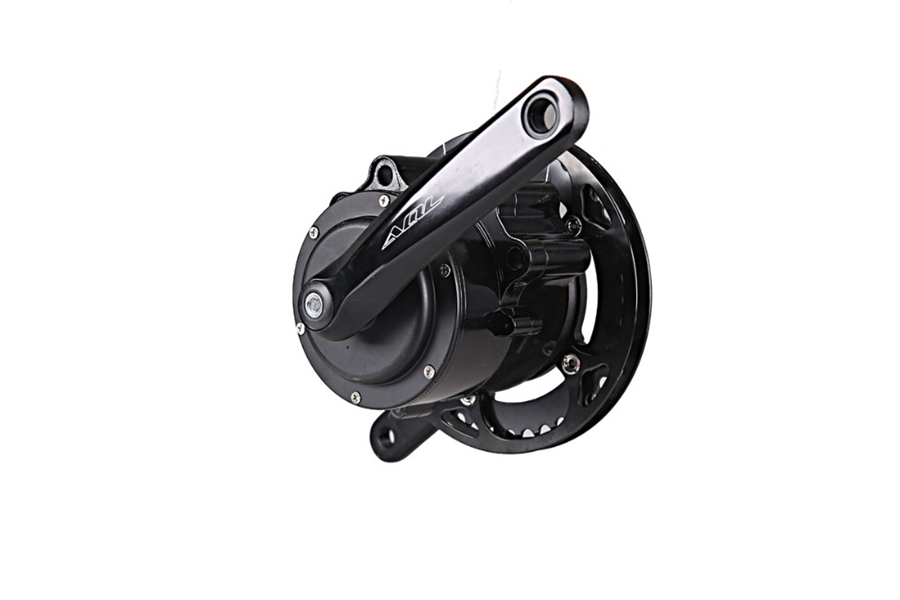

With an integrated speed sensor, this mid-drive motor,which can provide a maximum torque of 120 N.m.



With the coaxial motor structure that is created independently by our company, has a rated power of 350W and a reduction ratio of 1: 38, providing ideal power for e-bikes.



Steel gears are used totally on this motor, ensuring the reliability of running in any environment.



This motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes.




Parameter


Model No.

MS1300

Position

Mid Motor

Wheel

34T/38T/42T

Construction

Gear drive

Rated Voltage

48V

Rated Power

350W

Output torque

120N.m

Max Support Up To

25Km/h, 32Km/h

Motor Efficiency

≥75%

Pedal Sensor

Speed

Color

Black

Reduction ratio

1:38

IP Rating

IP 54

Weight

5KG

Noise

<55dB

Warranty

2 years

Standards Followed:

CE/ROHS

Operating Temperature

-10 ~ 40





 MS1300 (2).pngMS1300 ebike drive system.jpg
