MT2000

浏览次数:2202   更新时间:2022-07-03


Product Details


MT series can be more sensitive, and provides a maximum torque of 120N.m to meet any scene requirements.



With its modular motor design and integrated controller, the mid drive motor makes disassembly easier and improve service responsiveness.



Steel gears are used totally on this motor, ensuring the reliability of running in any environment.

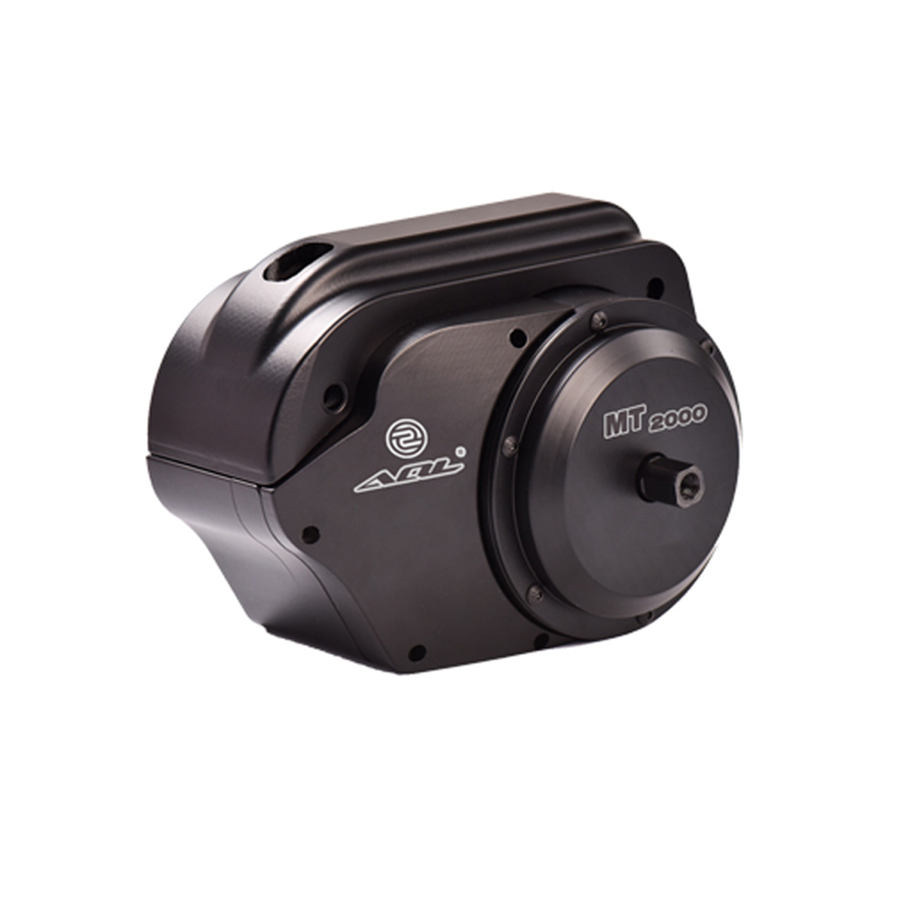

MT2000 mid drive motor is specially designed for trekking, all-mountain riding or commuting.



A new generation of mid drive system for electric power assisted bicycle, driven by a compact built-in high-speed brushless motor, mid shaft torque sensor as well as a unique planetary gear transmission structure.




Parameter


Model No.

MT2000

Position

Mid Motor

Wheel

34T/38T/42T

Construction

Gear drive

Rated Voltage

36V

Rated Power

250W

Output torque

120N.m

Max Support Up To

25Km/h, 32Km/h

Motor Efficiency

≥75%

Pedal Sensor

Speed+Torque

Color

Black

Reduction ratio

1:38

IP Rating

IP 54

Weight

5KG

Noise

<55dB

Warranty

2 years

Standards Followed:

CE/ROHS

Operating Temperature

-10 ~ 40

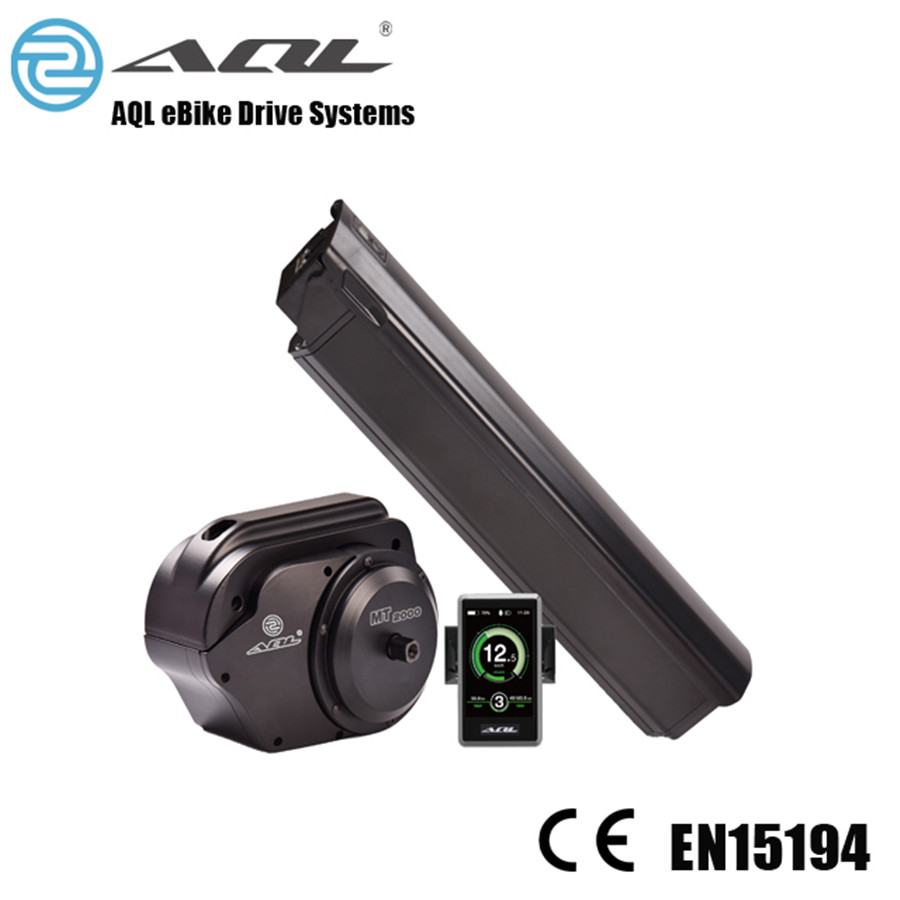

MT2000 ebike drive system.jpg
