High Performance Off-Road Crossover Electric Bicycle

浏览次数:1995   更新时间:2022-09-01

We have launched a new model-- AQL CROSSOVER! Looks different from regular electric bike. Our design philosophy is to combine the look of a motorcycle with a e-bike. Developed a stylish and sporty off-road electric bicycle, developed for maximum performance.



What are the parameters ?

Ø Model: AQL - CROSSOVER

Ø Frame Material:  Aluminum Alloy 6061

Ø Motor Type: Brushless geared rear hub motor

Ø Motor Brand: BAFANG

Ø Power: 48V 750W

Ø  Battery: 48V 20AH LG battery cells (21700)

Ø Battery position:Down Tube

Ø Tire: 24

Ø Brake: Hydraulic Disc Brake

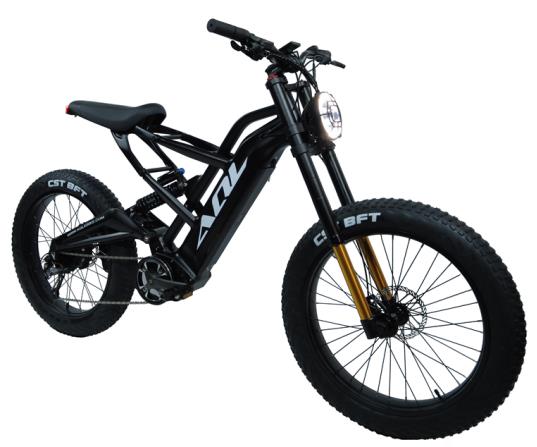

Motorcycle-inspired E-bike



This is a motorcycle inspired high performance off -road crossover electric bicycle, looks like a cruiser. Still using the design of the integrated down tube battery, it's built around a sturdy 6061 aluminum alloy frame.



AQL CROSSOVER e-bike features a BAFANG 750W geared rear hub motor for up to 28 mph (45 km/h) in Class 3 street-riding mode or up to 32 mph (50 km/h) when unlocked for off-road. There are five levels of motor assist available, a speed sensor detects rider input, and a SHIMANO 8-speed derailleur in onboard for ride flexibility. Meanwhile, a 48V 20AH LG 21700 cell battery pack fuel tank offers up to 50 miles (80 km) of per-charge range.




Rear suspension with lockout helps smooth out some of the bumps along the way, the 24 inch rims wrapped in 4.0 inch fat tires and use hydraulic disc brakes front and back with 180mm rotors. A high quality LCD display panel with an adjustable viewing angle is mounted mid handlebar, and there's a USB port for topping up mobile devices while out and about.





Elsewhere, the AQL CROSSOVER model comes with a 130-lux super bright headlight with built-in electric horn and an rear light that includes turn indication and braking functions. Benefits from extended motorcycle seating with a gel insert for long-haul comfort.


Welcome to contact us to get more details and quotatio
